Plasma Cutter Pilot Arc VS Plasma Cutter Non-Pilot Arc
When it comes to plasma cutters, two primary types are commonly used: pilot arc plasma cutters and non-pilot arc plasma cutters. Understanding the differences between these two types is essential for a professional welder, In this article, we will explore the disparities between pilot arc plasma cutters and non-pilot arc plasma cutters.
Pilot Arc Plasma Cutter

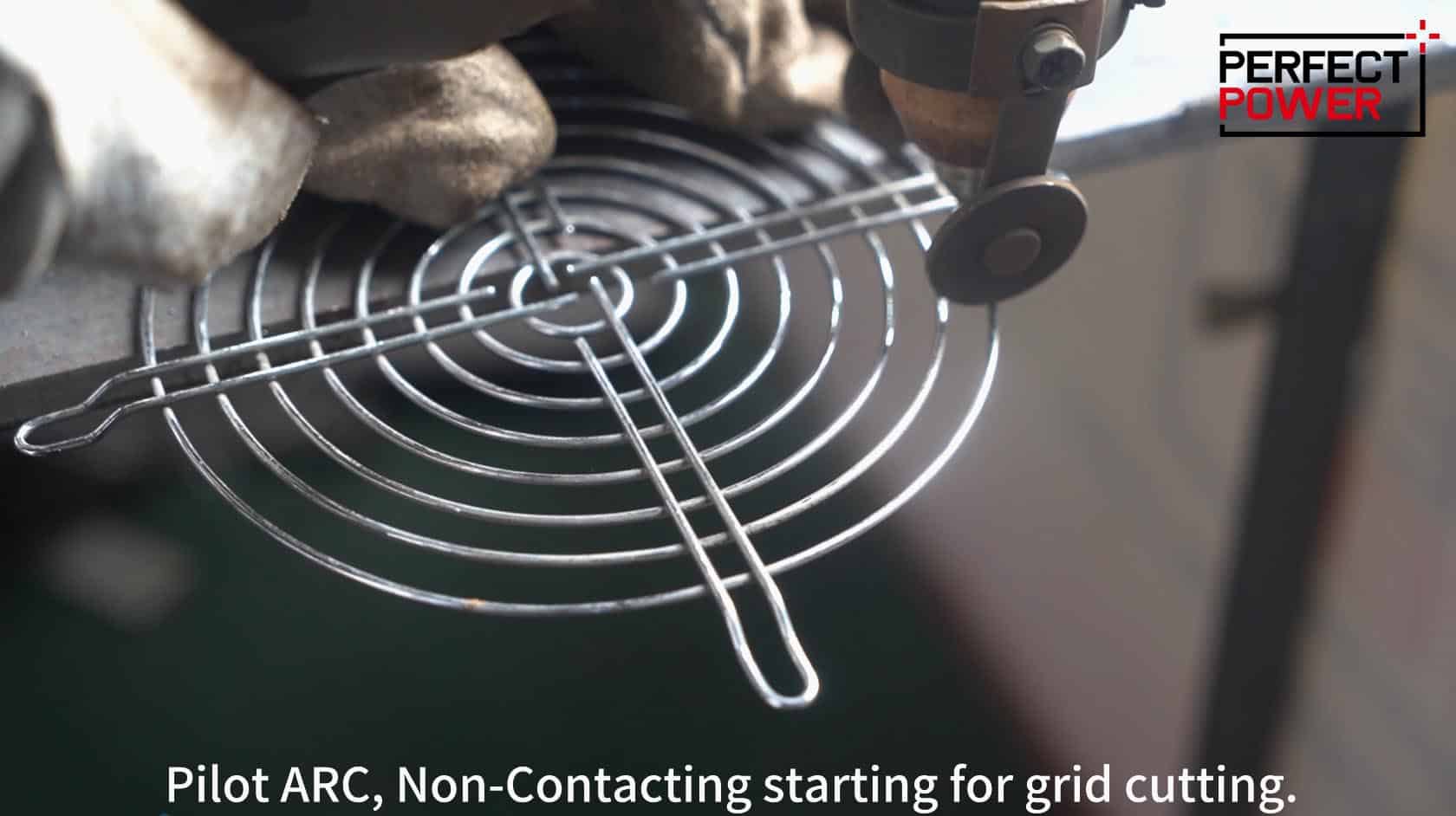

A pilot arc plasma cutter employs a high-frequency pilot arc to initiate the cutting process. This type of plasma cutter generates a small, low-energy electrical arc between the electrode and the nozzle, creating a plasma stream. The pilot arc is designed to withstand interruptions caused by the cutting process, allowing for stable arc performance even when encountering painted or rusty surfaces.
Advantages:
- Effective for cutting through painted, coated, or dirty surfaces.
- Capable of piercing through metal, eliminating the need for pre-drilled holes.
- Ideal for industrial environments due to its ability to handle challenging cutting conditions.
- Offers consistent and reliable cutting performance.
Non-Pilot Arc Plasma Cutter
In contrast, a non-pilot arc plasma cutter relies on direct contact between the electrode and the workpiece to establish the cutting arc. The electrode tip touches the metal surface, completing an electrical circuit and initiating the plasma arc. Once the arc is established, the torch can be lifted for continuous cutting.
Advantages:
- More cost-effective compared to pilot arc plasma cutters.
- Simpler operation as it does not require a pilot arc starting sequence.
- Generally lighter and more portable due to the absence of pilot arc components.
The Differences between Pilot Arc Plasma Cutter and Non-Pilot Arc Plasma Cutter
- Initial Arc Formation: Pilot arc plasma cutters use a high-frequency pilot arc, while non-pilot arc plasma cutters require direct contact between the electrode and the workpiece.
- Cutting Conditions: Pilot arc plasma cutters excel in challenging cutting conditions, such as painted or rusty surfaces, while non-pilot arc plasma cutters may struggle with these obstacles.
- Piercing Ability: Pilot arc plasma cutters can pierce through metal, eliminating the need for pre-drilled holes. Non-pilot arc plasma cutters require pre-drilled holes for piercing.
- Cost and Portability: Non-pilot arc plasma cutters are generally more cost-effective and portable due to their simplified design without pilot arc components.
You May Ask about The Pilot Arc Plasma Cutter VS Non-Pilot Arc Plasma Cutter
Q1: What’s the main difference between a Pilot Arc Plasma Cutter and a Non-Pilot Arc Plasma Cutter?
A: The main difference lies in how the arc is initiated. A Pilot Arc Plasma Cutter uses a two-stage process, where the arc starts between the electrode and the nozzle first, then transfers to the metal. The Non-Pilot Arc Plasma Cutter, on the other hand, directly initiates the arc between the electrode and the workpiece.
Q2: Does a Pilot Arc Plasma Cutter work better on rusty or painted materials than a Non-Pilot Arc Cutter?
A: Yes, one of the advantages of a Pilot Arc Plasma Cutter is that it can cut through rusty, painted, or dirty surfaces with ease since it doesn’t require direct contact with the metal to start the arc.
Q3: Is there a difference in cut quality between the two?
A: Generally, both can produce quality cuts, but the consistency and ease of use may favor the Pilot Arc, especially on uneven or dirty surfaces. However, the specific cut quality can also depend on the machine’s quality and the operator’s skill.
Q4: Which one is safer to use?
A: Both are designed with safety in mind. However, since the Pilot Arc Plasma Cutter doesn’t need direct contact to initiate the arc, it might offer a slight advantage in terms of reducing potential risks of electric shock when used correctly.
Q5: Is there a significant price difference between the two?
A: Pilot Arc Plasma Cutters tend to be more expensive than Non-Pilot Arc versions because of the added technology and benefits. However, prices can vary based on brand, features, and power capabilities.
Q6: Do I need any special accessories or consumables for the Pilot Arc Plasma Cutter?
A: Both types will require consumables like electrodes, nozzles, and shields. The exact consumables and their lifespan can vary between models, but in general, Pilot Arc Plasma Cutters might consume nozzles faster due to the continuous arc between the nozzle and electrode.
Q7: Which one is more suitable for beginners?
A: Both can be suitable for beginners, but a Pilot Arc Plasma Cutter might offer a more user-friendly experience due to its ability to cut through various surfaces without direct contact and its typically more stable arc.
Conclusion
As a welder, choosing between a pilot arc plasma cutter and a non-pilot arc plasma cutter depends on the specific welding requirements and working conditions. Pilot arc plasma cutters offer advantages in challenging cutting conditions and piercing capabilities, while non-pilot arc plasma cutters are more cost-effective and portable. Understanding these differences will help welders make informed decisions when selecting the appropriate plasma cutter for their projects.
