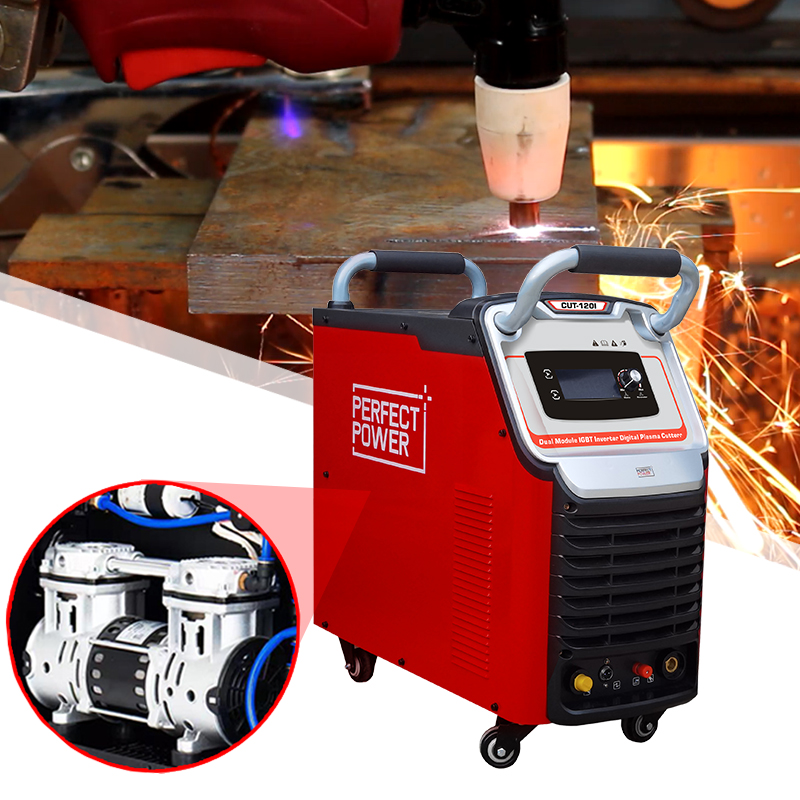

120 AMP Plasma Cutter CUT-120I Plasma Cutting Machine
This CUT-120I plasma cutter is built on a 120 AMP inverter platform, this plasma cutter can tackle your fabrication work, formwork, or auto body repairs in a cinch and is designed to work with 380 voltages when needed. Buy your 120 AMP inverter plasma cutter and start your project today at Perfectwelders.
Product Description
1. Thanks to the advanced inverter technology, the machine is robust with powerful cutting capacity.
2. Able to be connected with CNC equipment to achieve automatic cutting; the connector is optional.
3. Intelligent visual operation instruction makes your work easy
4. Powerful cutting capacity, narrow cutting seam, and clean cutting edge.
5. 2T/4T self-locking function.
6. Pilot arc starting increases cutting capability and cutting speed, improving the service life of the torch kit.
7. Operation safety protection against over-voltage, low-voltage, over-current and over-heated.
8. Heavy-duty cycle for industrial use.
Additional Information
| Model | CUT-120I |
|---|---|
| Power input AC(V) | 3pH 380V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity | 20 kVA |
| Rated current input(A) | 32.5 A |
| Rated output current(A)/voltage(V) | 120 A/128V |
| Max. cutting current (A) | 120 A |
| Open circuit voltage DC(V) | 300 V |
| Rated duty cycle(%) | 60 |
| Max.cutting thickness(mm) | 45 MM |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 740*405*710 MM |
| Weight (KG) | 37/39 |
