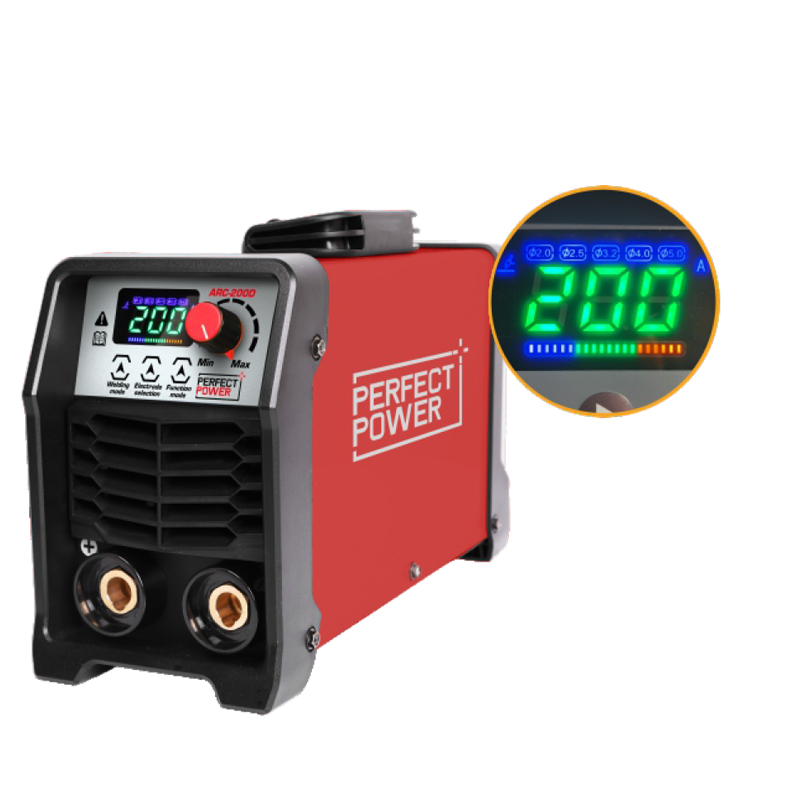

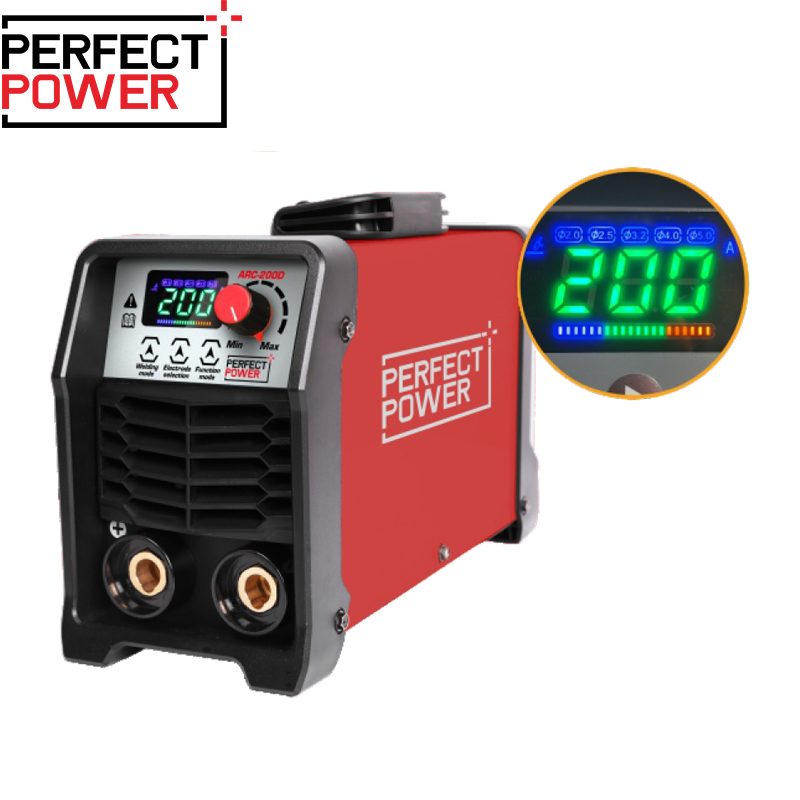

ARC-200D IGBT Inverter MMA Stick Welding Machine
Product Description
1. Both MMA and lift TIG function.
2. Intelligent visual operation instruction makes your work easy.
3. Digital controlled, compact
design, portable but robust.
4. User-friendly and cost-effective.
5. Adjustable Arc Force, Anti-Stick and Hot Start technology
enable easy arc starting, arc stability, and smooth welding.
6. Overload protection.
Additional Information
| Model | ARC-200D |
|---|---|
| Power input AC(V) | 1pH 220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 9.4 |
| Rated current input(A) | 42 |
| Rated output current(A)/voltage(V) | 200/28.0 |
| Welding current range(A) | 20-200 |
| Open circuit voltage DC(V) | 62 |
| Rated duty cycle(%) | 50 |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 460*150*260 |
| N.W(kg) | 5 |
