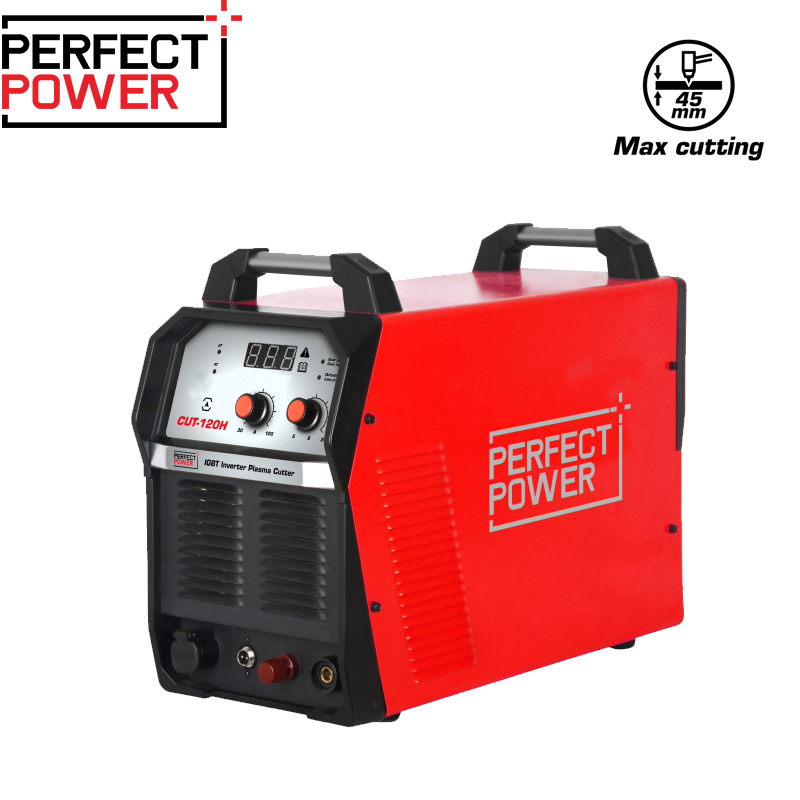

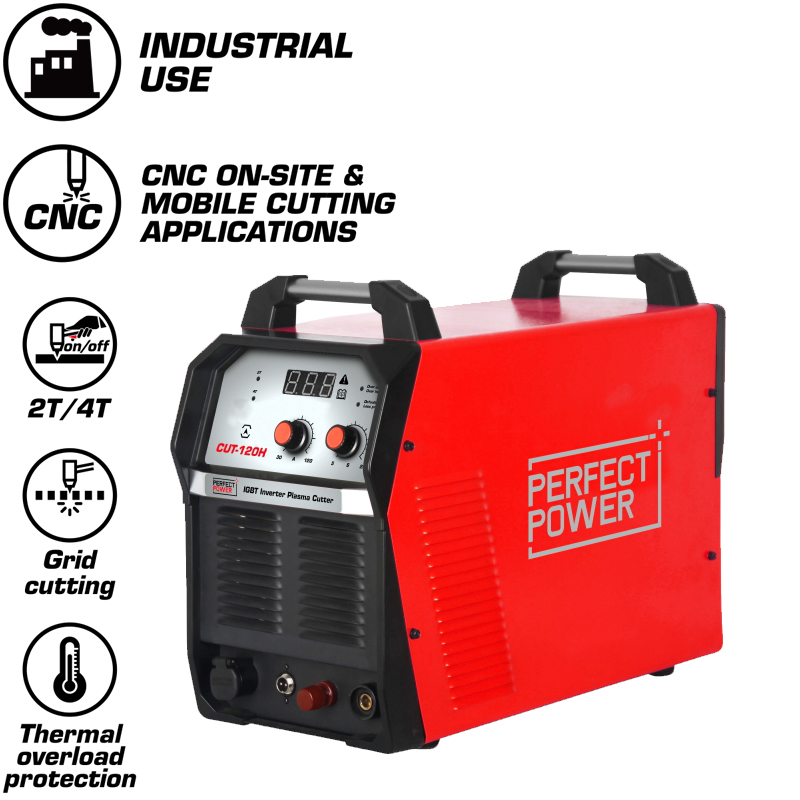

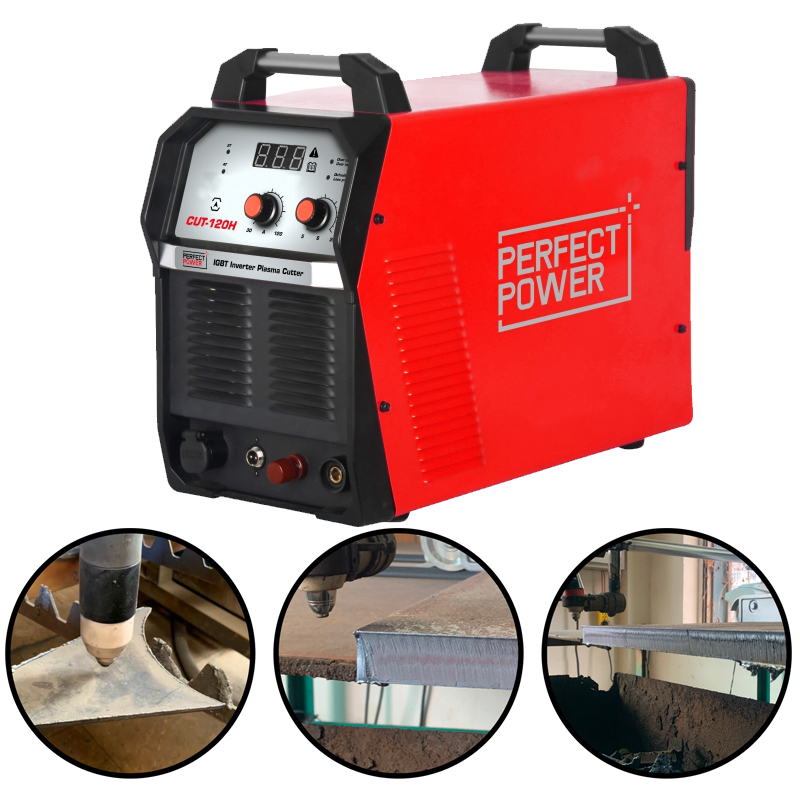

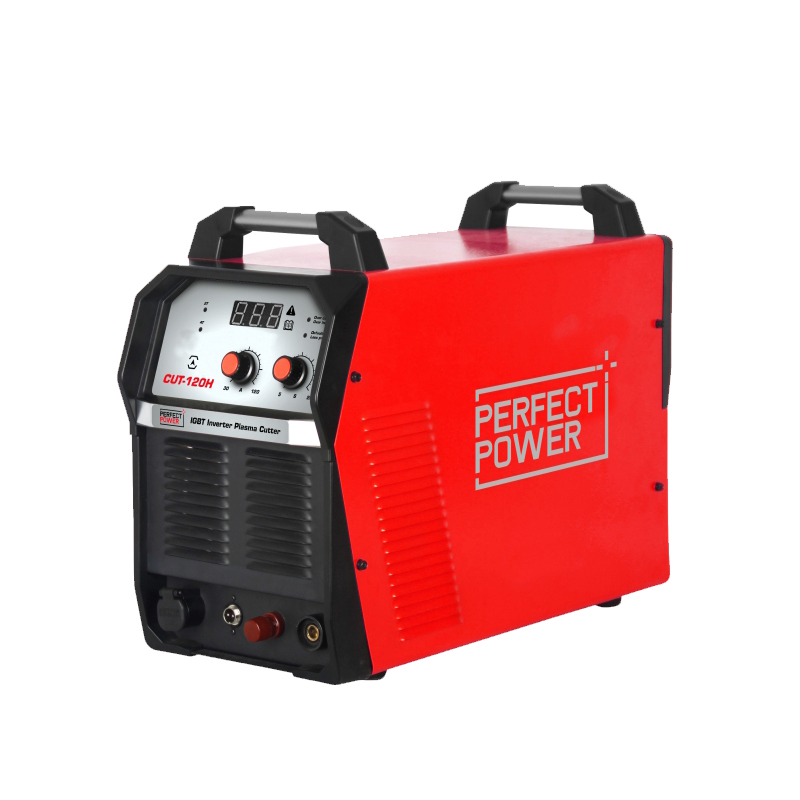

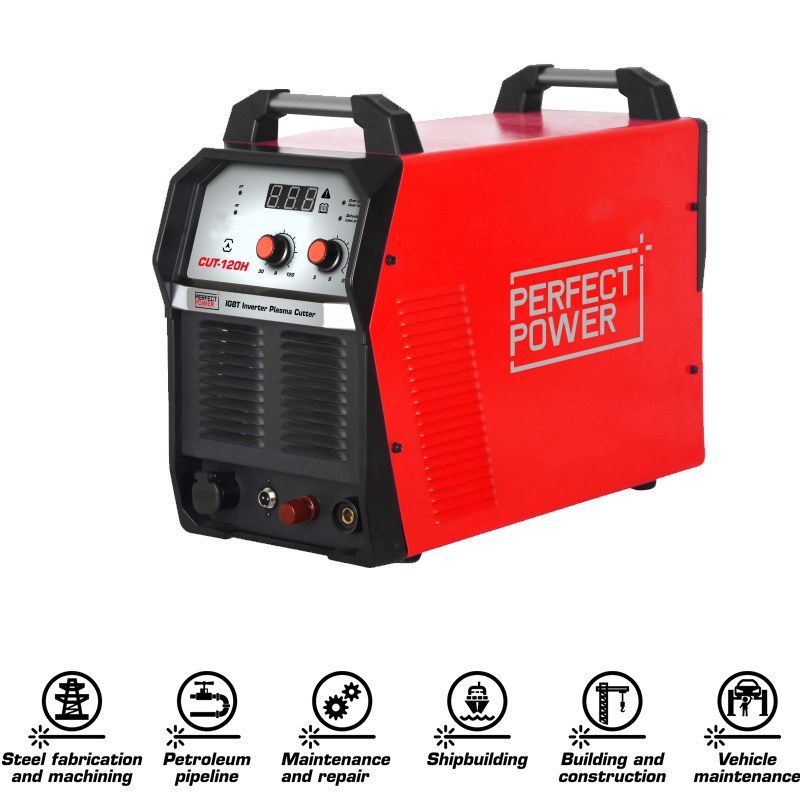

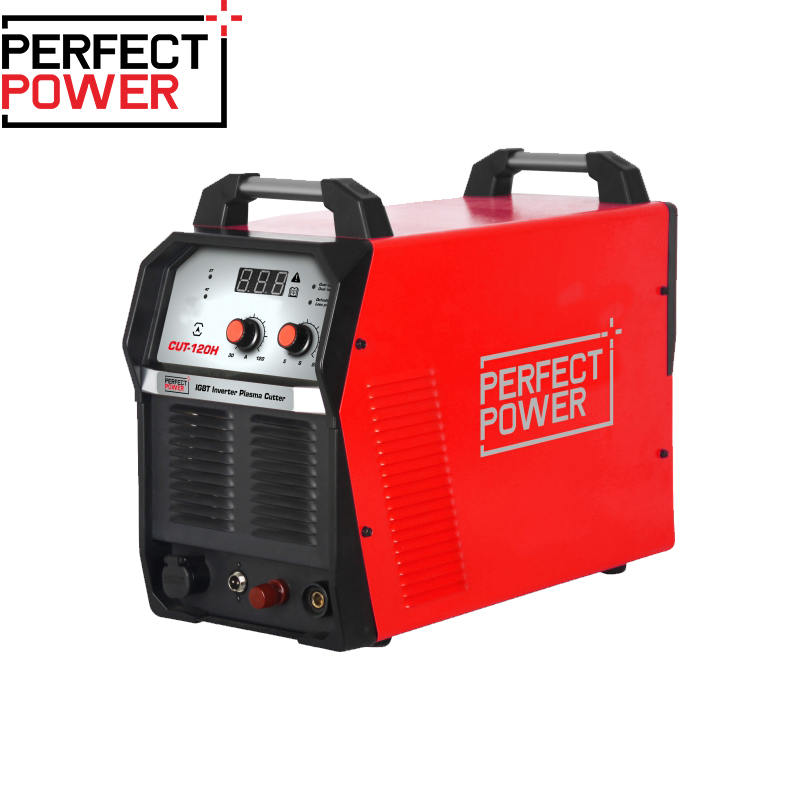

CUT-120H IGBT Inverter Plasma Cutting Machine
Product Description
1. Thanks to the advanced inverter technology, the machine is robust with a powerful cutting capacity.
2. Able to be connected with CNC equipment to achieve automatic cutting; the connector is optional.
3. Powerful cutting capacity, narrow cutting seam, and clean cutting edge.
4. 2T/4T self-locking function.
5. Pilot arc starting increases cutting capability and cutting speed, improving the service life of torch kit.
6. Operation safety protection against over-voltage, low-voltage, over-current and over-heated.
7. Heavy-duty cycle for industrial use.
Additional Information
| Model | CUT-100H |
|---|---|
| Power input AC(V) | 3ph 380V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity | 23.0 kVA |
| Rated current input(A) | 35 |
| Rated output current(A)/voltage(V) | 120/128 |
| Max. cutting current (A) | 120 |
| Open circuit voltage DC(V) | 300 |
| Rated duty cycle(%) | 60 |
| Max.cutting thickness(mm) | 45 |
| IP grade | IP21 |
| Insulation grade | F |
| Dimensions(mm) | 630*360*515 |
| Weight (KG) | 29 |
