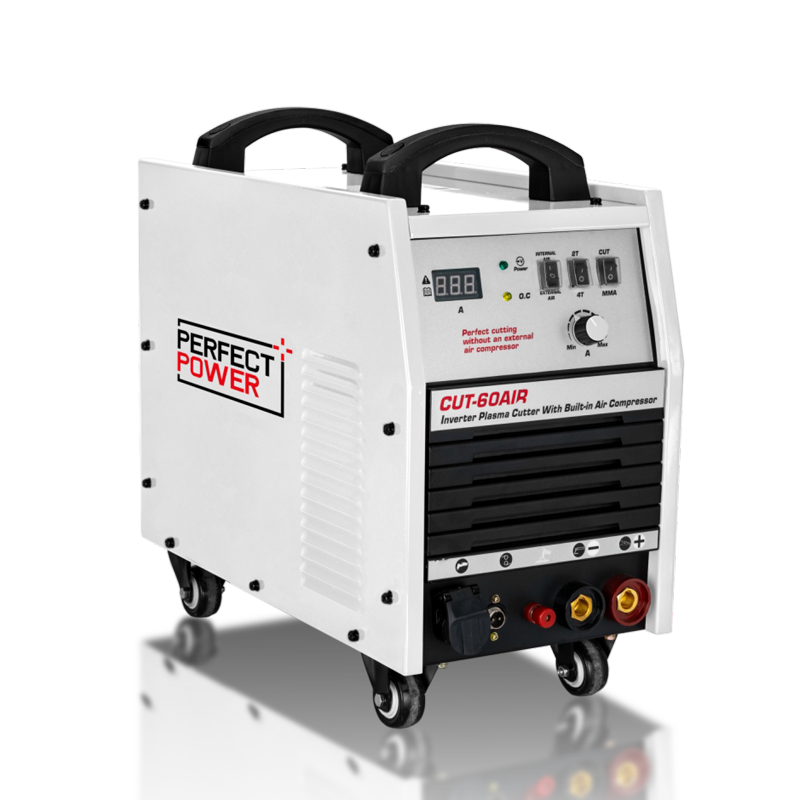

CUT-60AIR Air Plasma Cutter
60 Amp Non-Touch Pilot Arc Plasma Cutter, 25mm Maximum Cut, 60% Duty Cycle, Plasma Cutting – Anywhere, Anytime
CUT-60AIR air plasma cutter is the newest model of the professional digital control plasma cutting machine with built-in air compressor advanced inverter technology. CUT-60AIR plasma cutter is a high-quality design manufactured in accordance with industrial-level standards. The plasma cutting machine has a high-cutting performance and is very user-friendly with a beautiful appearance and exquisite production technology. The instrument is installed inside the machine on the panel, making it more convenient and easier to use. The air filter is installed in the machine and is controlled automatically by a solenoid valve, which greatly improves the work efficiency. The normal cutting thickness of the CUT-60AIR air plasma cutting machine is 15mm, and the maximum cutting thickness is 20mm.
Product Description
CUT-60AIR air plasma cutter is the newest model of the professional digital control plasma cutting machine with built-in air compressor advanced inverter technology. CUT-60AIR plasma cutter is a high-quality design manufactured in accordance with industrial-level standards. The plasma cutting machine has a high-cutting performance and is very user-friendly with a beautiful appearance and exquisite production technology. The instrument is installed inside the machine on the panel, making it more convenient and easier to use. The air filter is installed in the machine and is controlled automatically by a solenoid valve, which greatly improves the work efficiency. The normal cutting thickness of the CUT-60AIR air plasma cutting machine is 15mm, and the maximum cutting thickness is 20mm.
Features??
1. Built in Air Compressor .
2. Highly convenient, operate it anywhere.
3. More precise cut, thinner kerf, less slag to clean up. 4. Stand-off torch cutting.
5. Cut Thickness,15mm Quality Cutting, Max 25mm Cutting.
6. External Air Compressor can be connected.
7. MMA function, max 170A.
What’s Included??
5M(L) P80 cutting torch
2M(L) 10mm2 cable with 300A ground clamp
2M(L) Gas Hose (Hose Hoop*2pcs)
Valve/regulato (1PC)
Additional Information
| Power input AC(V) | 1ph 220V ??15% |
|---|---|
| Power input frequency(Hz) | 50/60Hz |
| Max. Load Power Capacity(kVA) | 8.6kVA |
| Rated current input(A) | 27.8A |
| ated output current(A)/voltage(V) | 60A/104V |
| Max. cutting current (A) | 60A |
| Open circuit voltage DC(V) | 280V |
| Rated duty cycle(%) | 60% |
| Max.cutting thickness(mm) | 25mm |
| IP grade | IP21 |
| Insulation grade | F |
| Dimensions(mm) | 480*290*390 mm |
| N.M./G.W.(kg) | 28kg/34kg |
| Quality cutting thickness (mm) | Steel/Carbon Steel:??20 mm Stainless Steel:??20 mm Aluminum:??15 mm Copper/Brass:??10 mm |
| Welding Process | CUT / MMA / HF / Pilot-arc / 2T/4T |
