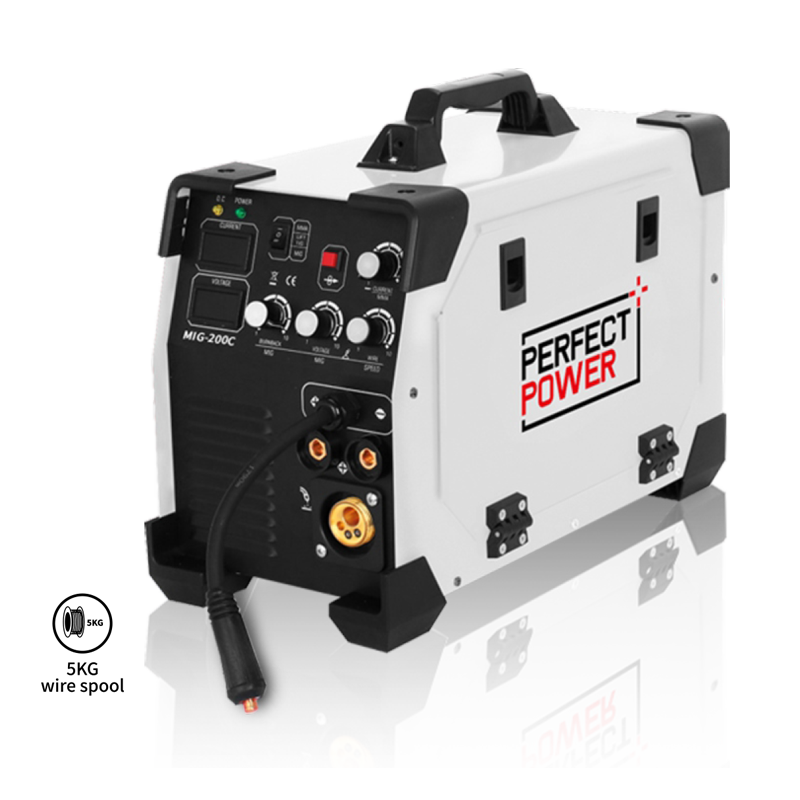

MIG-200C MIG Welder /Flux-Cored/TIG/Stick Multi-Process Welder
200 Amp MIG Welder, Flux-Cored Gasless Welder, TIG Welder, Stick Welder, 110-Volt and 200-Volt IGBT Inverter Welding, 60% Duty Cycle
MIG-200C mig welder is a multi-functional(MIG Welder, Flux-Cored Gasless Welder, TIG Welder, Stick Welder ) electric welding machine with a sleek and elegant appearance with superb production technology. It adopts the most advanced IGBT inverter technology, resulting in excellent arc stability and flawless welding effects. All metals can be welded: stainless steel, carbon steel, low carbon steel, steel, iron, and cast iron.
Product Description
MIG-200C mig welder is a multi-functional(MIG Welder, Flux-Cored Gasless Welder, TIG Welder, Stick Welder ) electric welding machine with a sleek and elegant appearance with superb production technology. It adopts the most advanced IGBT inverter technology, resulting in excellent arc stability and flawless welding effects. All metals can be welded: stainless steel, carbon steel, low carbon steel, steel, iron, and cast iron.
Features??
1. Full bridge IGBT converter guarantees stable output power.
2. Can achieve MIG/MAG, gasless flux cored wire welding, MMA and lift TIG.
3. Simple operation interface plus synergic adjustment, easy to operate.
4. Effective spatter control, improved penetration, and better welding effect.
5. ideal for use in outdoor and indoor conditions.
6. Excellent protection circuit, with overheat and overvoltage protection function, safe and reliable, and easy to trouble shooting.
What’s Included??
2M(L) Power Cable (American plug)
3M(L) 15AK MIG Torch
2M(L) 16mm2 cable with 200A ground clamp 35-50
2M(L) 16mm2 cable with 300A electrode holder 35-50
American plug adaptor (big size)
Additional Information
| Power input AC(V) | 1ph 110V/220V ??15% |
|---|---|
| Power input frequency(Hz) | 50/60Hz |
| Max. Load Power Capacity(kVA) | 4.9kVA |
| Rated current input(A) | 29A |
| Rated output current(A)/voltage(V) | 180/23.0??MIG??220V?? 160/26.4??MMA??220V?? / 140/21.0??MIG??110V?? 120/24.8??MMA??110V?? |
| Welding current range(A) | 30-180??MIG??220V?? 30-160??MMA??220V??/ 30-140??MIG??110V?? 20-120??MMA??110V |
| Open circuit voltage DC(V) | 62V |
| Rated duty cycle(%) | 60% |
| Wire Feeding Speed(M/min) | 2-15 M/min |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 520*300*375 mm |
| N.M./G.W.(kg) | 11.0kg / 13.5kg |
| Wire Melting Type | short circuit transfer |
| Welding Process | MIG / Flux-Cored / TIG / Stick |
| Wirespool Capable | 1kg/5kg |
| Recommend Wire(mm) | 0.6~1.0mm |
| Thickness of welding material??mm?? | Steel/Carbon Steel:1.0~8.0mm Stainless Steel:1.0~8.0mm |
