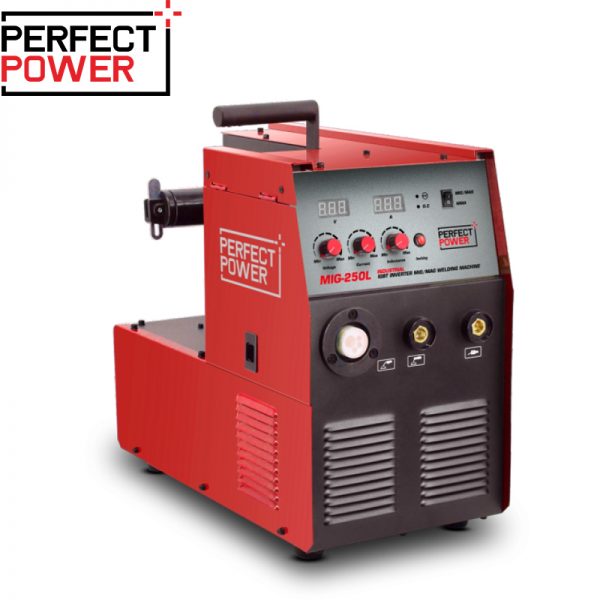

MIG-250L MIG MAG IGBT Inverter Welding Machine
Product Description
1. Multi-function welding – MIG/MAG, MMA and FLUX CORED Wire welding.
2. Capable for 15kg and 5kg wire spool.
3. Stable arc with less spatter.
4. Ideal for use in outdoor and indoor conditions.
5. High cost performance
Additional Information
| Model | MIG-250L |
|---|---|
| Power input AC(V) | 1pH 220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 12 |
| Rated current input(A) | 49.5 |
| Rated output current(A)/voltage(V) | 250/26.5 |
| Welding current range(A) | 50-250 |
| Open circuit voltage DC(V) | 56 |
| Rated duty cycle(%) | 60 |
| Wire Feeding Speed(M/min) | 2-24 |
| IP grade | IP21S |
| Insulation grade | H |
| Dimensions(mm) | 608*353*568 |
| Weight (KG) | 25 |
| Wire Melting Type | short circuit transfer |
