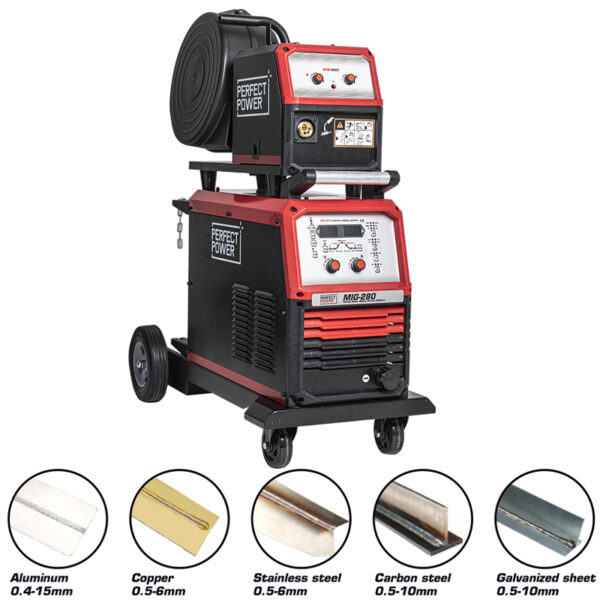

MIG-280 MIG MAG IGBT Inverter Welding Machine
Product Description
Ideal for industry or workshop use with gas cylinder rack
Double-pulse MIG and Flux-cored welding, the Best welder for thin metal welding, User-friendly, Spool gun optional ready for aluminum, Ideal for industry or workshop use with gas cylinder rack
The MIG-2380is an ideal welding machine for industry or workshop use with a gas cylinder rack. Made to surmount the challenges of welding and MIG brazing high-tensile steel, mild steel, stainless steel, and aluminum. This machine provides a tailored welding experience packed with resource-saving features at every turn.
FEATURES
1．Multi-function welding – MIG/MAG, Pulsed MIG, MMA /TIG and FLUX CORED Wire welding.
2．Pulsed function for Aluminium welding.
3．20kg wire spool capability for heavy industrial use.
4．2T/4T function.
5．Professional MMA welding with VRD function.
6．Stable arc with less spatter.
7．Industrial grade IGBT module adopted.
8．Portable separated wire feeder with control cables and control keys, can
Additional Information
| Model | MIG-280 |
|---|---|
| Power input AC(V) | 1ph 220V ±15% 3ph 380V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 9.2 |
| Rated current input(A) | 42(380V) 14(220V) |
| Rated output current(A)/voltage(V) | 250/26.5 |
| Welding current range(A) | 25-250 A |
| Open circuit voltage DC(V) | 45 |
| Rated duty cycle(%) | 60% |
| Wire Feeding Speed(M/min) | 2-21 |
| IP grade | IP21 |
| Insulation grade | H |
| Dimensions(mm) | 940*460*650 |
| Weight (KG) | 62 |
| Wire Melting Type | globular transfer |
