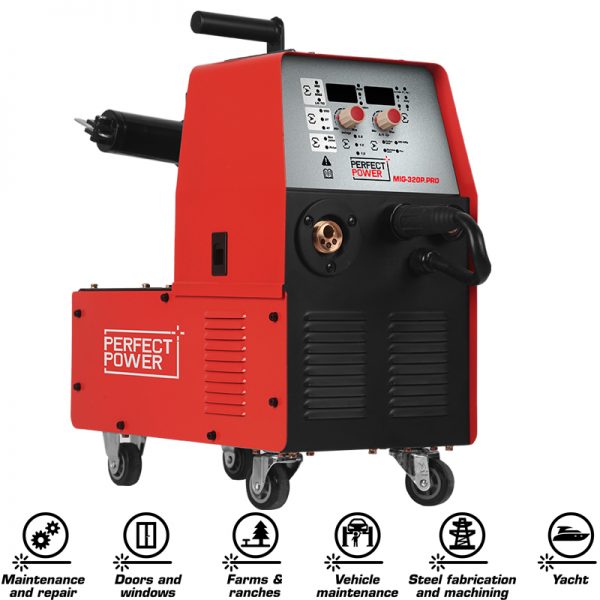

MIG-320P.PRO MIG MAG IGBT Inverter Welding Machine
Product Description
1. Multi-function welding – MIG/MAG, Pulsed MIG, MMA /TIG, and FLUX CORED Wire welding.
2. Pulsed function for Aluminium welding.
3. Capable for 15kg and 5kg wire spool.
4. Professional MMA welding process with VRD function.
Additional Information
| Model | MIG-320P.PRO |
|---|---|
| Power input AC(V) | 3ph 220V/440V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 9.6(220V) 12.1(440V) |
| Rated current input(A) | 25.2(220V) 12.4(440V) |
| Rated output current(A)/voltage(V) | 200/24.0（MIG,220V） 200/28.0（MMA,220V） 320/30.0（MIG,440V） 300/32.0（MMA,440V） |
| Welding current range(A) | 40-200（MIG,220V） 30-200（MMA,220V） 40-320（MIG,440V） 40-300（MMA,440V） |
| Open circuit voltage DC(V) | 72 |
| Rated duty cycle(%) | 30 |
| Wire Feeding Speed(M/min) | 2-18 |
| IP grade | IP21S |
| Insulation grade | H |
| Dimensions(mm) | 550*310*535 |
| Weight (KG) | 24.8 |
| Wire Melting Type | spray transfer |
