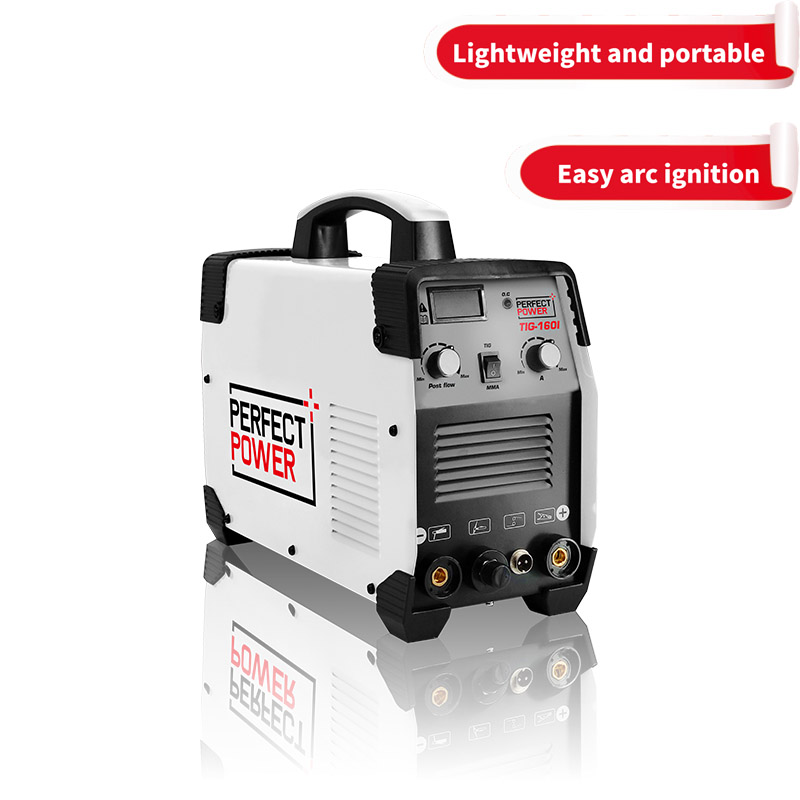

TIG-160I TIG Welder
160-Amp HF-TIG Arc Stick DC Inverter Welder, 35% Duty Cycle, 110-Volt or 220-Volt Voltage Welding
TIG-160I TIG welder is a high-quality design that is directly manufactured according to high industry standards. The TIG welding machine has excellent arc stability and extremely high control performance, which can produce the most ideal welding results. The machine also has superb production technology to achieve perfect welding. It can weld stainless steel, low carbon steel, iron, pig iron, cast iron, and other conductive metals. It is the most important tool for home maintenance, farms, construction sites and all types of environments.
Product Description
TIG-160I TIG welder is a high-quality design that is directly manufactured according to high industry standards. The TIG welding machine has excellent arc stability and extremely high control performance, which can produce the most ideal welding results. The machine also has superb production technology to achieve perfect welding. It can weld stainless steel, low carbon steel, iron, pig iron, cast iron, and other conductive metals. It is the most important tool for home maintenance, farms, construction sites and all types of environments.
Features??
1. Both TIG & MMA function.
2. Exceptional energy-saving performance and high reliability.
3. Thanks to the high frequency & high voltage arc ignition circuit, it realizes excellent arc starting with a 99.8% success rate, especially suited for different types of spot welding.
4. Adjustable post-flow function.
5. Suitable for welding stainless steel, alloy steel, carbon steel, and copper, etc.
6. Over current & heating protection.
What’s Included??
4m(L) WP17 TIG torch
2m(L) cable with ground clamp
2m(L) cable with electrode holder
3m(L) gas hose(hose hoop*2pcs)
Additional Information
| Power input AC(V) | 1ph 110V/220V ??15% |
|---|---|
| Power input frequency(Hz) | 50/60 Hz |
| Max. Load Power Capacity(kVA) | 6.8kVA |
| Rated current input(A) | 52.8A |
| Rated output current(A)/voltage(V) | 160/16.4 ??TIG?? 160/26.4??MMA?? |
| Welding current range(A) | 10-160 ??TIG?? 20-160 ??MMA?? |
| Open circuit voltage DC(V) | 60V |
| Rated duty cycle(%) | 35% |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 452*212*325 mm |
| N.M./G.W.(kg) | 8.3kg/11.7kg |
| Welding Process | DC TIG,MMA welding |
| Diameter of tungsten electrode??mm?? | 1.0~3.2 mm |
| Thickness of welding material??mm?? | Steel/Carbon Steel:1.0~6.0mm Stainless Steel:1.0~6.0mm |
