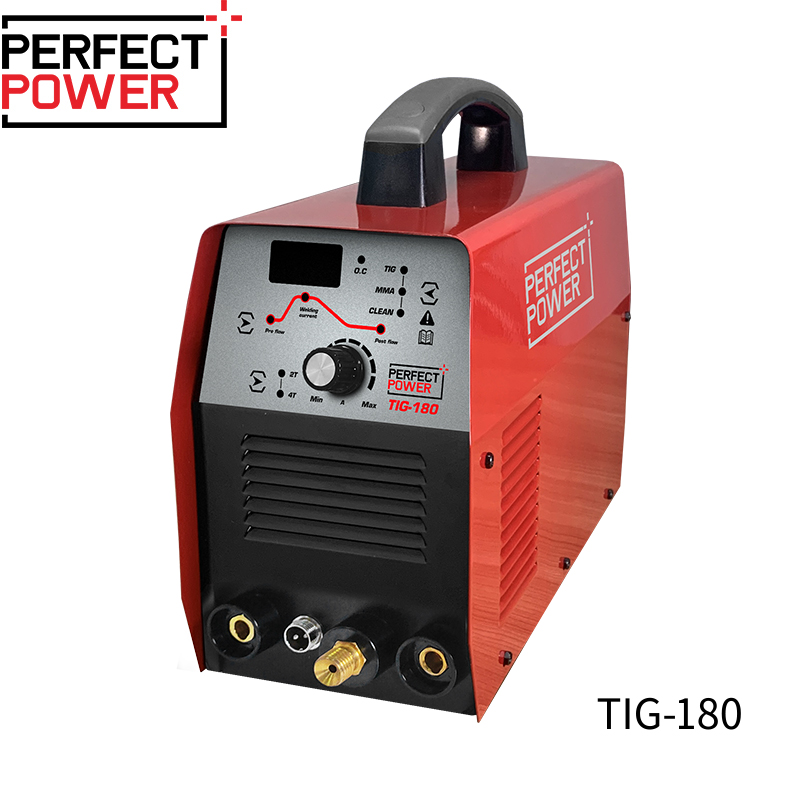

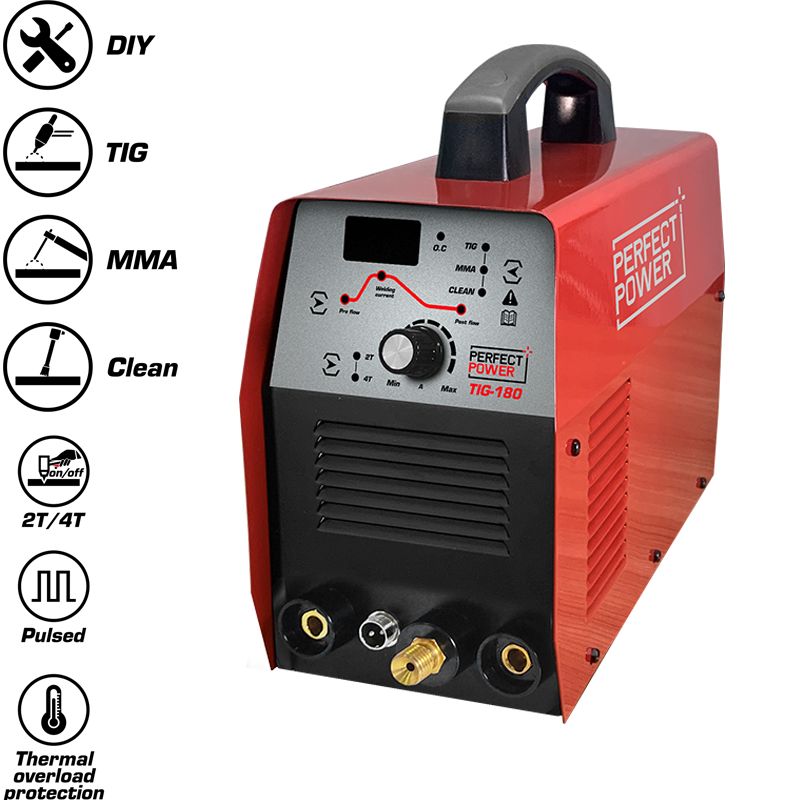

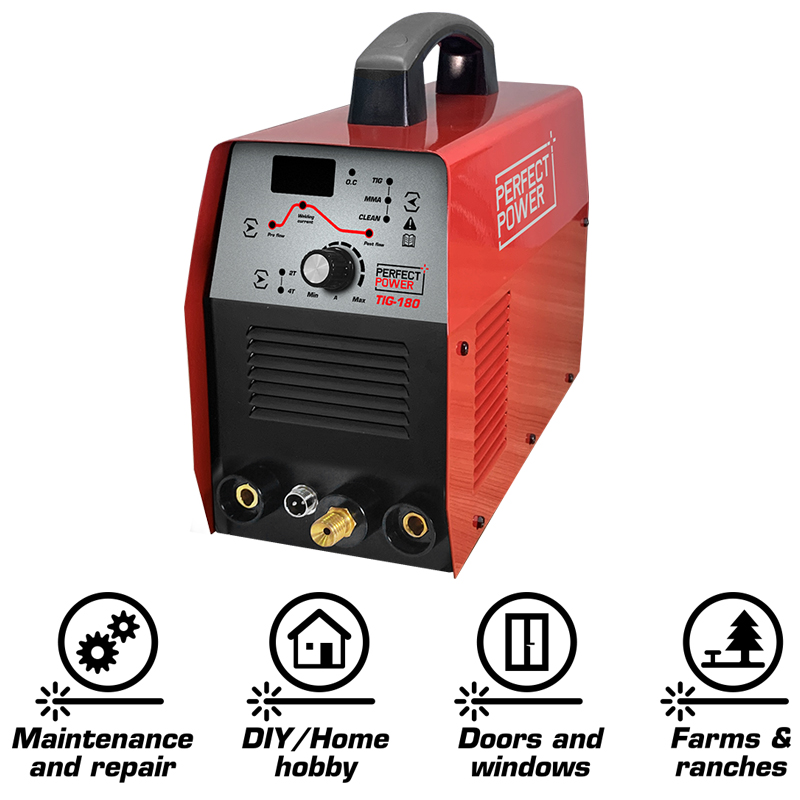

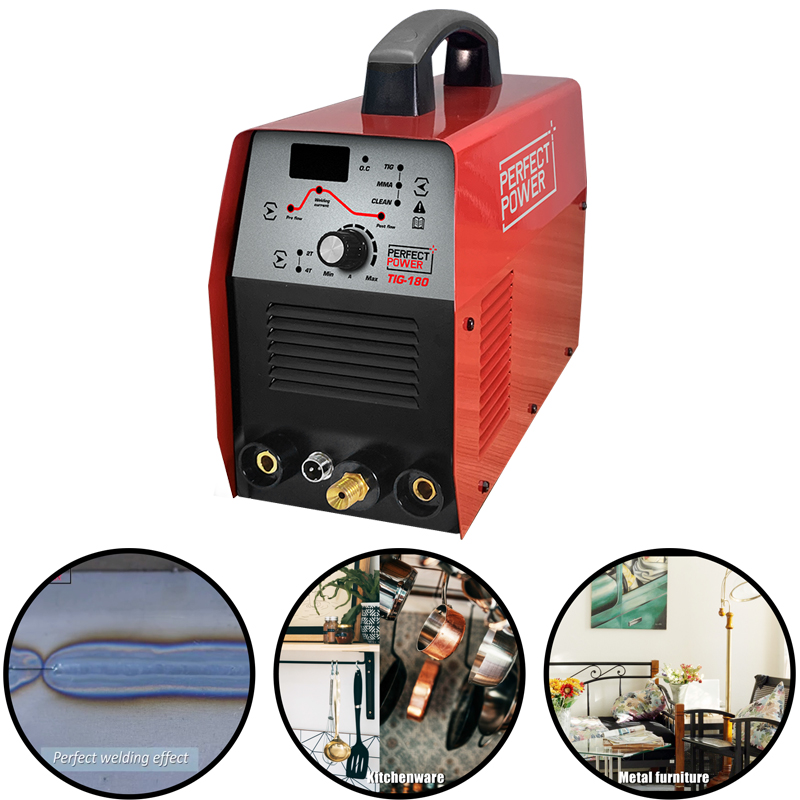

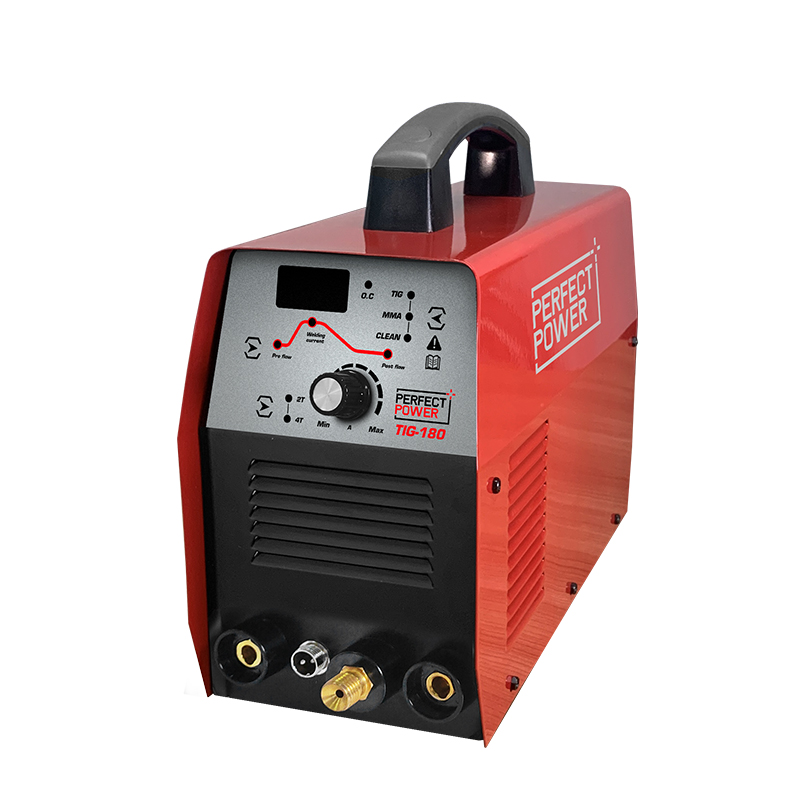

TIG-180 TIG Inverter Welding Machine With Clean Function
Product Description
1. Multi-function welder: DC TIG, Pulsed TIG, MMA, and Clean function.
2. High-frequency arc start with a high success rate.
3. Clean function, to clean the rust and oil on the surface of the material, like carbon steel and stainless steel.
4. 2T/4T function, adjustable Pre-Flow, and Post-Flow.
5. Exceptional energy-saving performance and high reliability.
6. Pulsed function only for TIG-160P/180P/200P.
Additional Information
| Model | TIG180 |
|---|---|
| Power input AC(V) | 1ph 220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 5.3 |
| Rated current input(A) | 24 |
| Rated output current(A)/voltage(V) | 180/17.2（TIG） 160/26.4（MMA） |
| Welding current range(A) | 10-180（TIG） 20-160（MMA） |
| Open circuit voltage DC(V) | 60 |
| Rated duty cycle(%) | 60 |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 400*155*310 |
| N.W.(kg) | 5.2 |
