TIG-200P AC DC IGBT Inverter TIG AC DC Welding Machine
Product Description

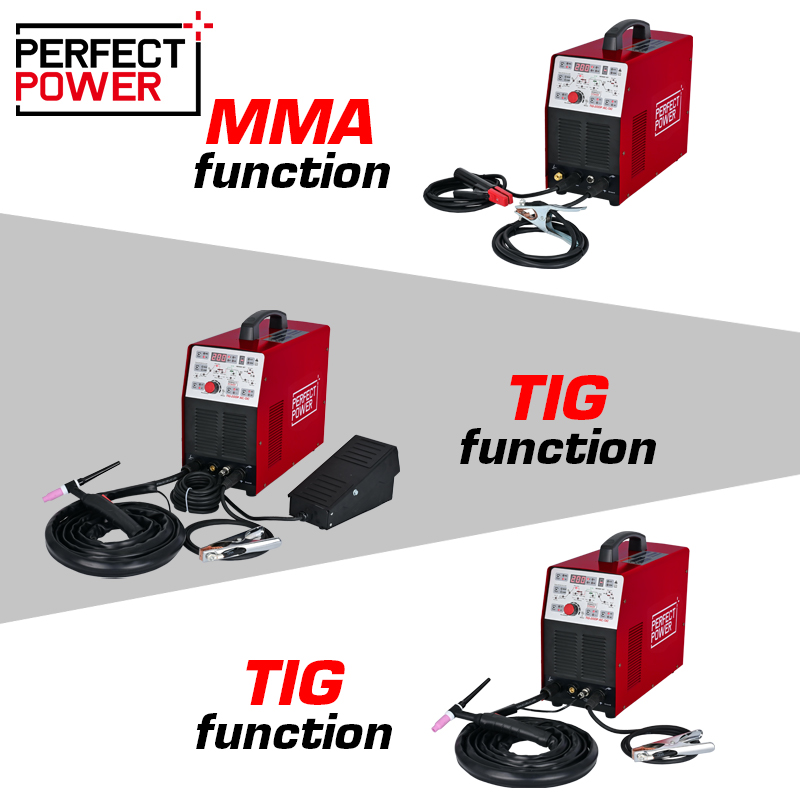

1. Multi-function welding-AC TIG,AC pulsed TIG,DC TIG,DC pulsed TIG,MMAand Auto welding
2. High-frequency arc start with a high success rate.
3. Memory function for easy operation,10 sets of parameters can be saved.
4. Adjustable clean width and clean scope

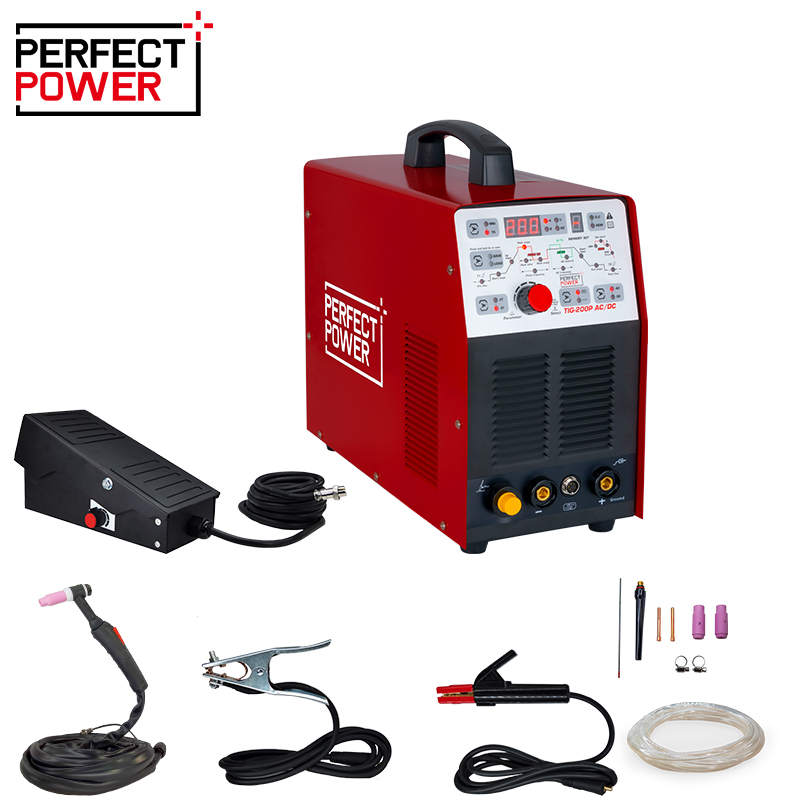

5. Optional torch with amperage control & optional foot pedal switch

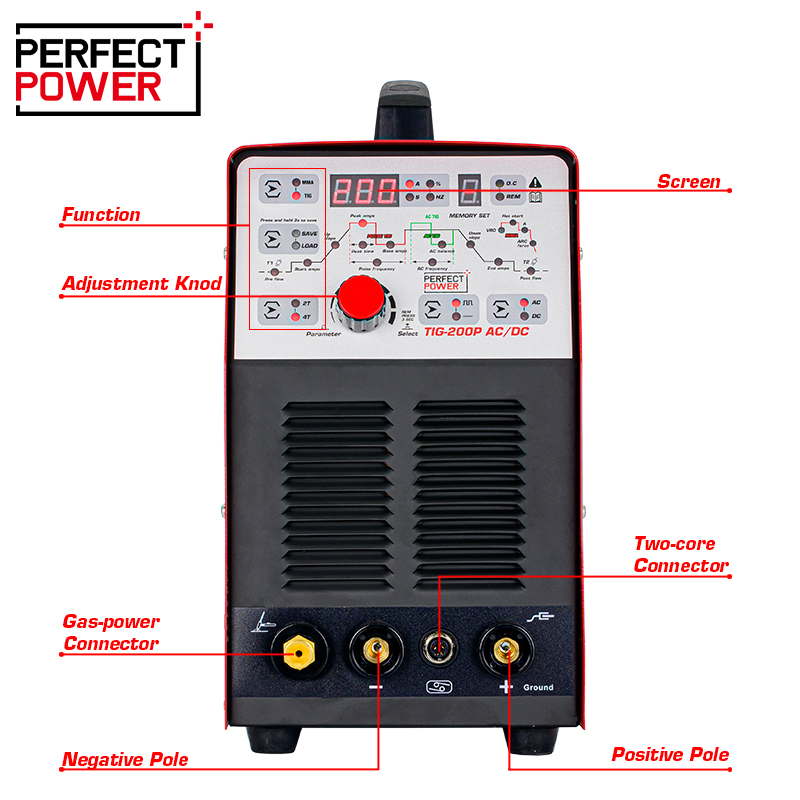

6. Digital control technology and one-knob intelligent control panel
7. Intelligent over-voltage, low-voltage,over-current, and over-heat protection, safe and reliable
8. Capable for different shapes welding, like butt-joint, corner joint, T-joint,lap-joint and cruciform joint
Additional Information
| Model | TIG-200P |
|---|---|
| Power input AC(V) | 1ph 220V ±15% |
| Power input frequency(Hz) | 50/60 |
| Max. Load Power Capacity(kVA) | 6.2（TIG）/8.4（MMA） |
| Rated current input(A) | 28（TIG）/38.1（MMA） |
| Rated output current(A)/voltage(V) | 200/18.0（TIG） 180/27.2（MMA） |
| Welding current range(A) | 5-200（TIG） 20-180（MMA） |
| Open circuit voltage DC(V) | 62 |
| Rated duty cycle(%) | 40 |
| IP grade | IP21 |
| Insulation grade | F |
| Dimensions(mm) | 600*400*475 |
| N.W.(kg) | 20 |
