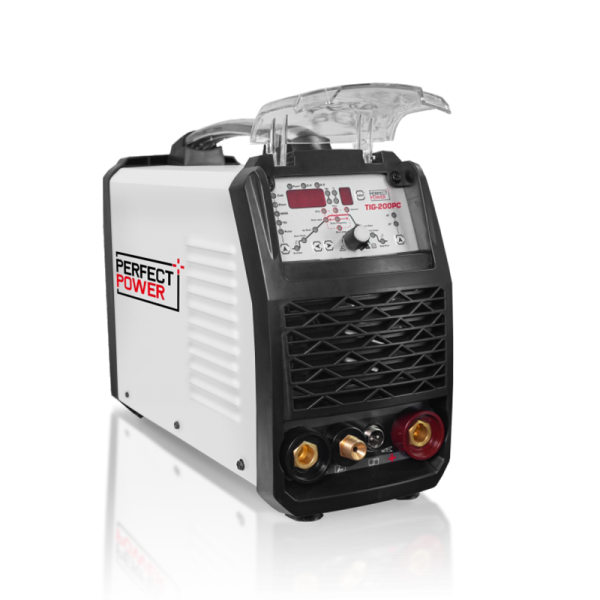

TIG-200PC TIG Welder
200-Amp TIG/Stick/Clean Welder 110-Volt Digital Arc Welding Machine High Frequency with IGBT Inverter
TIG-200PC TIG welder is a multi-functional 5-in-1 DC TIG, Cold TIG, Pulse TIG, MMA, and Clean professional combo welder capable of welding stainless steel, iron, mild steel, and nickel. These functions allow control of the welding process at a professional level from start to finish. It is perfect for any home project, for example, repairing your bedstead, snowblower, saw table, and other household equipment via its outstanding 40% duty cycle. It is also ideal for DIY programs. Take your welding projects anywhere, thanks to our lightweight welder machine, and start welding today.
Product Description
TIG-200PC TIG welder is a multi-functional 5-in-1 DC TIG, Cold TIG, Pulse TIG?? MMA and Clean professional combo welder capable of welding stainless steel, iron, mild steel, and nickel. These functions allow control of the welding process at a professional level from start to finish. It is perfect for any home project, for example, repairing your bedstead, snowblower, saw table, and other household equipment via its outstanding 40% duty cycle. It is also ideal for DIY programs. Take your welding projects anywhere, thanks to our lightweight welder machine, and start welding today.
Features??
1. Multi-function welder: DC TIG, Cold TIG, Pulse TIG, MMA, and Clean function.
2. Exceptional energy-saving performance and high reliability.
3. With HF TIG arc starting, allows to strike the arc easily with high frequency and makes it easy to establish an arc under a variety of conditions
4. Digital control technology, accurate welding power control, Cold TIG spot welding 0.4mm sheet with no deformation.
5. Clean function, to clean the rust and oil on the surface of the material, like carbon steel and stainless steel.
6. 2T/4T function, adjustable Pre-Flow and Post-Flow.
7. Capable for different shapes of welding, like butt-joint, corner joint, T-joint, lap joint, and cruciform joint
8. Over current & heating protection.
What’s Included??
4M(L)WP-17 TIG torch
4M(L) clean gun
2M(L) cable with 200A ground clamp.
2M(L) cable with 200A electrode holder
3M(L) gas hose(hose hoop*2pcs)
Additional Information
| Power input AC(V) | 1ph 110V/220V ??15% |
|---|---|
| Power input frequency(Hz) | 50/60 Hz |
| Max. Load Power Capacity(kVA) | 6kVA |
| Rated current input(A) | 31A |
| Rated output current(A)/voltage(V) | 190A/17.6V??TIG , 220V?? 160A/26.4V??MMA , 220V?? / 130A/15.2V??TIG , 110V?? 130A/25.2V??MMA , 110V?? |
| Welding current range(A) | 10-190A??TIG , 220V?? 20-160A??MMA , 220V?? / 10-130A??TIG , 110V?? 20-130A??MMA , |
| Open circuit voltage DC(V) | 65V |
| Rated duty cycle(%) | 40% |
| IP grade | IP21S |
| Insulation grade | F |
| Dimensions(mm) | 480*240*408 mm |
| N.M./G.W.(kg) | 7.5kg/10.5kg |
| Welding Process | DC TIG, Cold TIG , Pulse TIG, MMA, Clean |
| Diameter of tungsten electrode??mm?? | 1.0~3.2 mm |
| Thickness of welding material??mm?? | Steel/Carbon Steel:1.0~6.0mm Stainless Steel:1.0~6.0mm |
