Tungsten Electrode Types: An In-Depth Guide to Selecting the Right Electrode for Your TIG Welding Needs
When it comes to welding, the type of electrode you use can significantly impact the quality and strength of your welds. Tungsten electrodes, known for their high melting points and excellent performance in various welding processes, have become a popular choice for both amateur and professional welders. In this article, we’ll dive into the world of tungsten electrode types, exploring their unique characteristics, applications, and the factors to consider when choosing the right one for your specific welding needs.
Tungsten Electrode Types

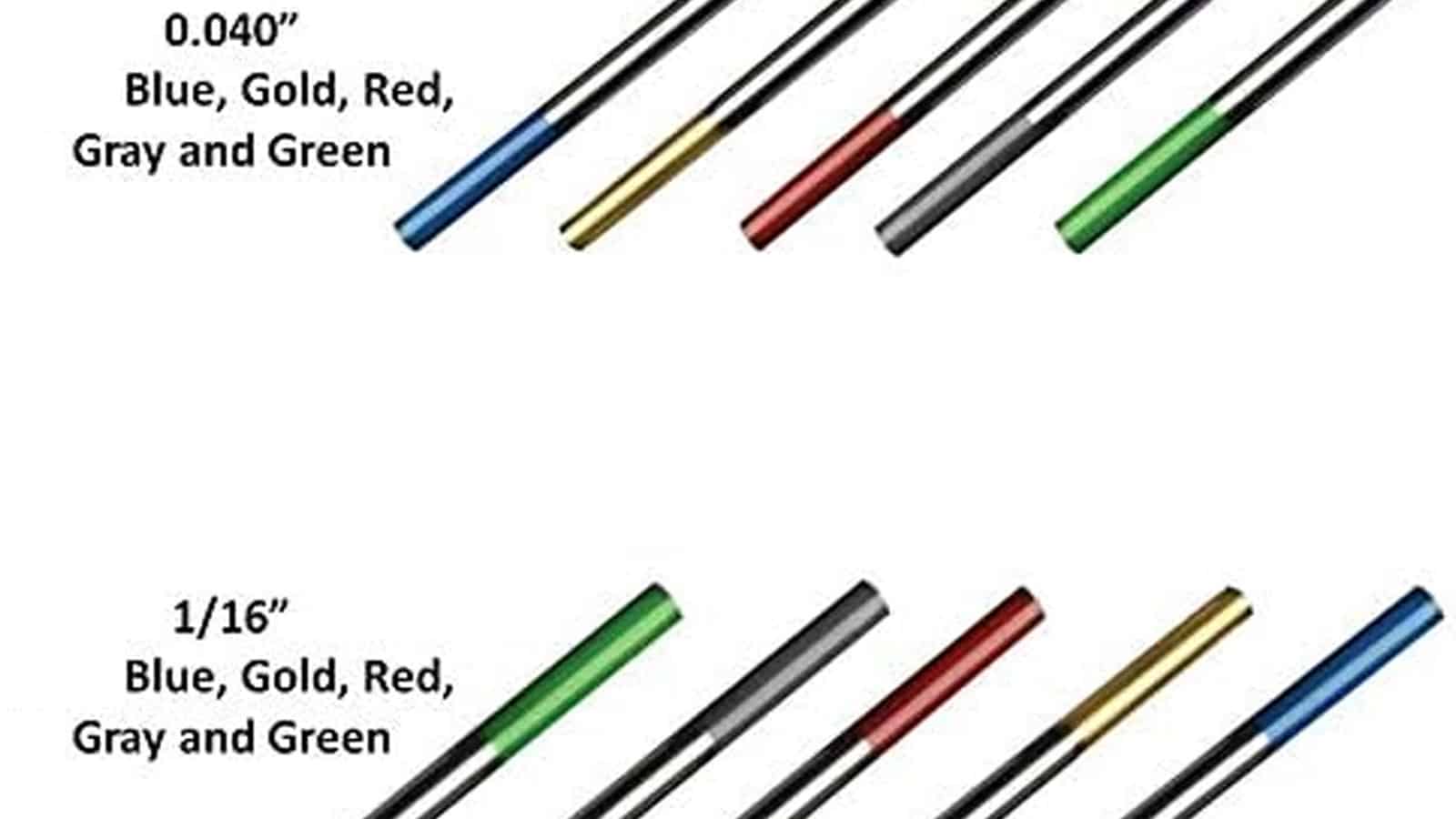

There are many types of tungsten electrode types that are used for different applications. Each tungsten electrode has a distinct configuration of tungsten depending on its type. These tungsten electrodes are also recognized by their color codes:
- Pure Tungsten Electrodes – Green
- 2% Thoriated Electrodes – Red
- Ceriated Electrodes – Orange
- Lanthanated Electrodes – Blue
- Zirconiated Electrodes – Brown
- Rare Earth Electrodes – Grey
Let’s take a closer look at the various tungsten electrode types, each serving a specific purpose in the welding realm.
1. Pure Tungsten Electrode
Pure tungsten electrodes, composed entirely of tungsten, are known for their exceptional heat resistance. They work well with alternating current (AC) and are commonly used for welding aluminum and magnesium alloys. However, they are not recommended for direct current (DC) welding due to their low current-carrying capacity.
2. Thoriated Tungsten Electrode
Thoriated tungsten electrodes, containing thorium oxide, are popular for their ease of arc starting and stable performance at both low and high amperages. They are suitable for DC welding of carbon steel, stainless steel, nickel alloys, and titanium.
3. Ceriated Tungsten Electrode
Ceriated tungsten electrodes, doped with cerium oxide, offer excellent arc stability and are well-suited for both AC and DC welding. They are commonly used for welding light-gauge metals and for applications requiring lower amperages.
4. Lanthanated Tungsten Electrode
Lanthanated tungsten electrodes, containing lanthanum oxide, are versatile and provide consistent arc performance. They work well with both AC and DC welding and are preferred for their long service life, making them suitable for various materials, including carbon steel, stainless steel, and exotic metals.
5. Zirconiated Tungsten Electrode
Zirconiated tungsten electrodes, blended with zirconium oxide, are best suited for AC welding applications. They maintain a stable arc, making them ideal for welding aluminum and magnesium alloys.
6. Rare Earth Tungsten Electrode
Rare earth tungsten electrodes, containing a mix of rare earth elements, provide exceptional arc stability and ignition. They are commonly used in applications involving exotic metals and alloys.
7. Hybrid Tungsten Electrode
Hybrid tungsten electrodes, a combination of different tungsten types, offer unique properties tailored for specific welding tasks. They are a versatile option that caters to various welding needs.
Factors to Consider When Choosing Tungsten Electrodes
Selecting the right tungsten electrode type depends on several crucial factors, each contributing to the overall welding performance. Here are the key considerations to keep in mind:
1. Base Metal
The type of base metal you are welding plays a significant role in electrode selection. Different metals require specific tungsten electrode types for optimal results.
2. Welding Current
Determine whether you are using AC or DC welding, as certain tungsten electrode types are better suited for one or the other.
3. Amperage Range
Consider the amperage range required for your welding application, as this can affect the electrode’s performance and longevity.
4. Welding Position
The welding position, whether flat, horizontal, vertical, or overhead, can influence the choice of tungsten electrode to achieve the desired weld quality.
5. Polarity
If using DC welding, consider whether you need a direct current electrode negative (DCEN) or direct current electrode positive (DCEP) electrode.
6. Gas Type
The type of shielding gas used can impact the weld quality, and certain tungsten electrode types are better suited for specific gas types.
Tungsten Electrode Type Selection Guide
Here’s a handy guide to help you select the most suitable tungsten electrode type for your welding needs:
| Base Metal | Electrode Type | Welding Current | Amperage Range | Welding Position | Polarity | Shielding Gas |
|---|---|---|---|---|---|---|
| Aluminum | Pure Tungsten | AC | Low | All Positions | N/A | Argon/Helium |
| Carbon Steel | Thoriated Tungsten | DC | Medium | All Positions | DCEP | Argon |
| Stainless Steel | Lanthanated Tungsten | AC/DC | High | All Positions | N/A | Argon/Helium |
| Copper Alloys | Zirconiated Tungsten | AC | Medium | All Positions | N/A | Argon/Helium |
| Titanium | Ceriated Tungsten | AC/DC | Low | All Positions | N/A | Argon/Helium |
| Exotic Metals | Rare Earth | AC/DC | High | All Positions | N/A | Argon/Helium |
FAQs about Tungsten Electrode Types
Q: What are the advantages of using pure tungsten electrodes?
A: Pure tungsten electrodes are highly heat-resistant and work well with AC current. They are ideal for welding aluminum and magnesium alloys due to their low reactivity.
Q: Can I use thoriated tungsten electrodes for both AC and DC welding?
A: Yes, thoriated tungsten electrodes offer stable performance in both AC and DC welding, making them suitable for various materials like carbon steel, stainless steel, and titanium.
Q: Are lanthanated tungsten electrodes better for low amperage applications?
A: Yes, lanthanated tungsten electrodes are known for their arc stability at lower amperages, making them ideal for welding light-gauge metals.
Q: What makes rare earth tungsten electrodes unique?
A: Rare earth tungsten electrodes contain a mix of rare earth elements that provide exceptional arc stability and ignition, making them suitable for exotic metals and alloys.
Q: Can I use zirconiated tungsten electrodes for welding aluminum?
A: Yes, zirconiated tungsten electrodes are well-suited for AC welding applications and are ideal for welding aluminum and magnesium alloys.
Q: What are hybrid tungsten electrodes, and when should I use them?
A: Hybrid tungsten electrodes are a combination of different tungsten types, offering unique properties tailored for specific welding tasks. They are a versatile option suitable for various welding needs.
Conclusion
In conclusion, selecting the right tungsten electrode type is essential for achieving high-quality welds in different applications. Each type of electrode offers unique properties and performance characteristics that cater to specific welding requirements. By considering factors such as base metal, welding current, amperage range, welding position, polarity, and shielding gas, you can confidently choose the perfect tungsten electrode for your welding projects. So, equip yourself with the knowledge provided in this article and elevate your welding experience to new heights.
